Heavy-Duty Swing Door Automation

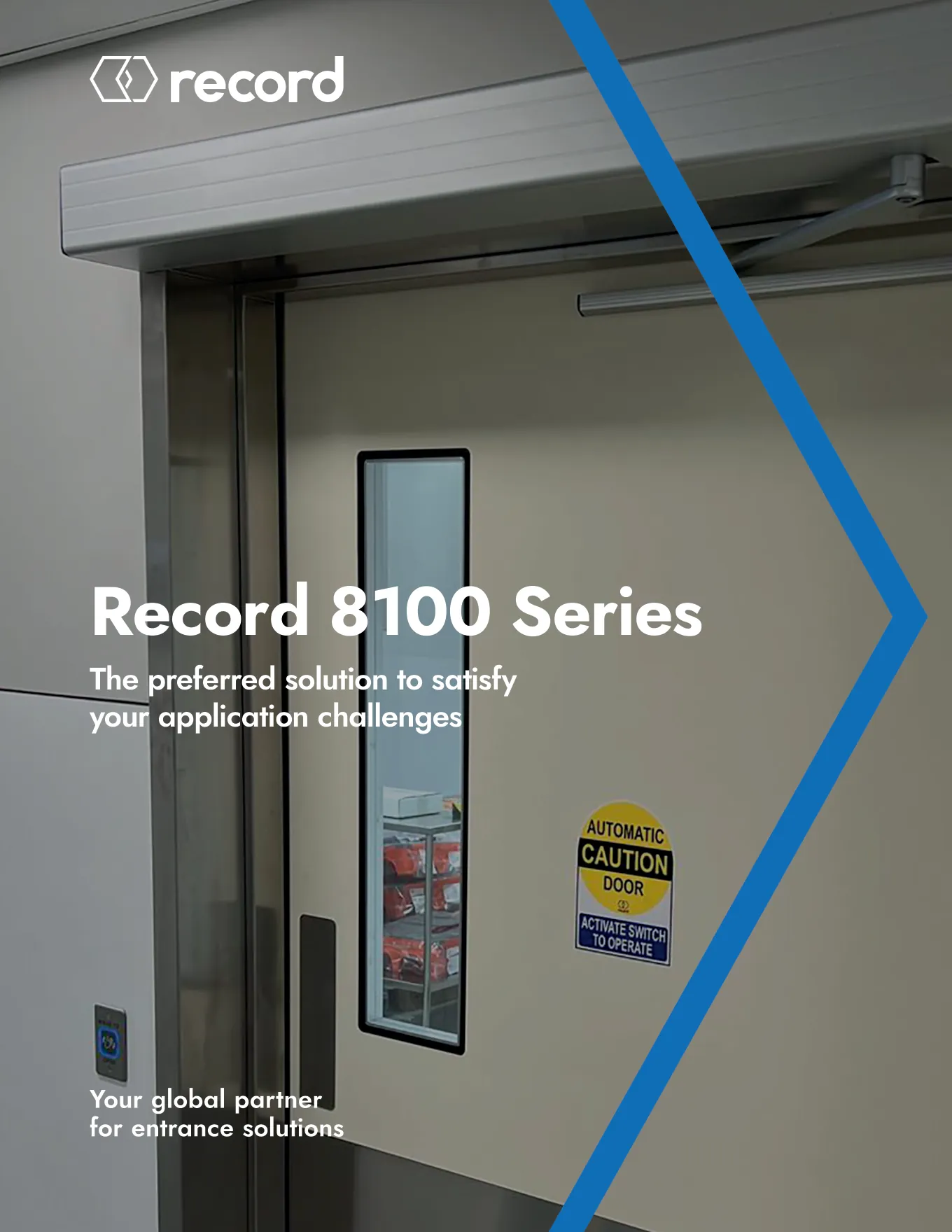

Record 8100 Series — Installed by Commercial Door Worx
High-Traffic Performance
Electro-mechanical drive provides smooth, low-noise motion designed for busy commercial entrances.
Flexible Configurations
Surface or overhead concealed headers; push/pull arms; center- or butt-hung doors; clear or dark bronze anodized finishes.
Smart Control & Safety
Electronic back-check, adjustable relock timing for strikes/mag locks, diagnostic interface, and programmable profiles.
ADA-Friendly Setup
Opening/closing forces are adjustable to meet ADA objectives and accommodate weatherstrip drag.

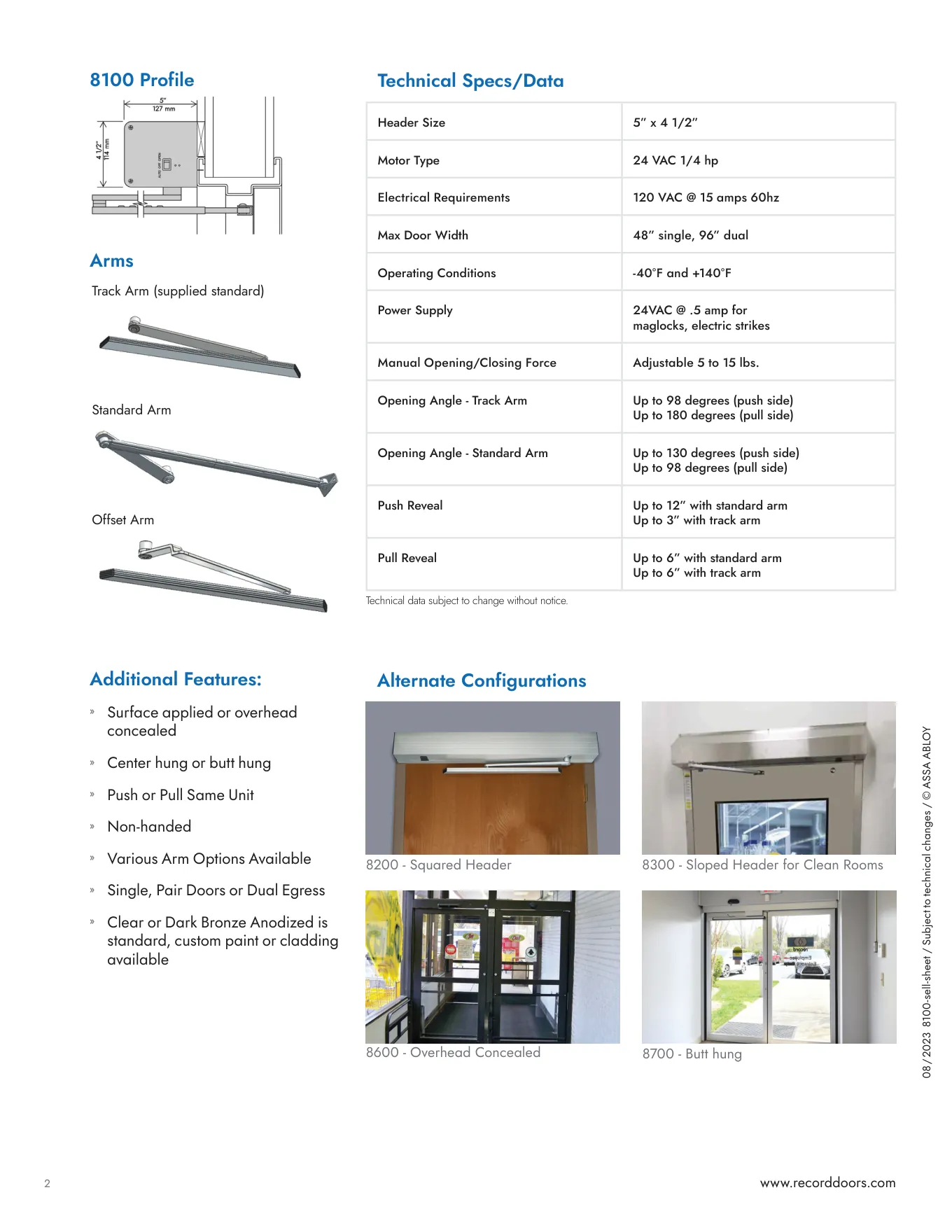

| Header Options | Surface applied (squared or sloped) or overhead concealed |
| Arm Types | Track, standard, and offset (push or pull) |
| Door Sizes | Single up to 48"; pairs up to 96" (typical) |
| Operating Temp | Approx. -40°F to +140°F (location dependent) |
| Power | 120 VAC (typical); accessory power available for locks |
| Standards | ANSI/BHMA A156.19 (low energy), A156.10 (full automatic); UL listings per configuration |
Why Commercial Door Worx
Turnkey Installation
We handle site evaluation, hardware selection, mounting, power, and access control integrations (strikes, mag locks).
Code & Accessibility
Service & Maintenance
Can the 8100 handle windy or stack-pressure entrances?
Yes. Programmable profiles and electronic back-check help control the door and reduce wear in wind/stack conditions.
Does it integrate with electric strikes or mag locks?
Yes. Accessory power and adjustable relock timing coordinate secure closing and reduce nuisance alarms.
Is it ADA friendly?
Yes. Adjustable forces and low-energy programming align with ADA goals and A156.19.
